Van De Graaff Generator

Product Code : SCL-E-11343
Science Lab Supplies is a leading Van De Graaff Generator Manufacturer,and suppliers in China, Van De Graaff Generator Manufacturer,and suppliers in South Africa, Van De Graaff Generator Algeria (Algiers), Van De Graaff Generator Angola (Luanda), Van De Graaff Generator Argentina (Buenos Aires), Van De Graaff Generator Armenia (Yerevan), Van De Graaff Generator Australia (Canberra), Van De Graaff Generator Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).

The motor is powered using a mains supply (230 V).
The base is fitted with a 4 mm diameter socket which can be used either for supporting a conducting sphere (fitted with a cranked rod support) or for a wire connection to a separate conducting sphere.

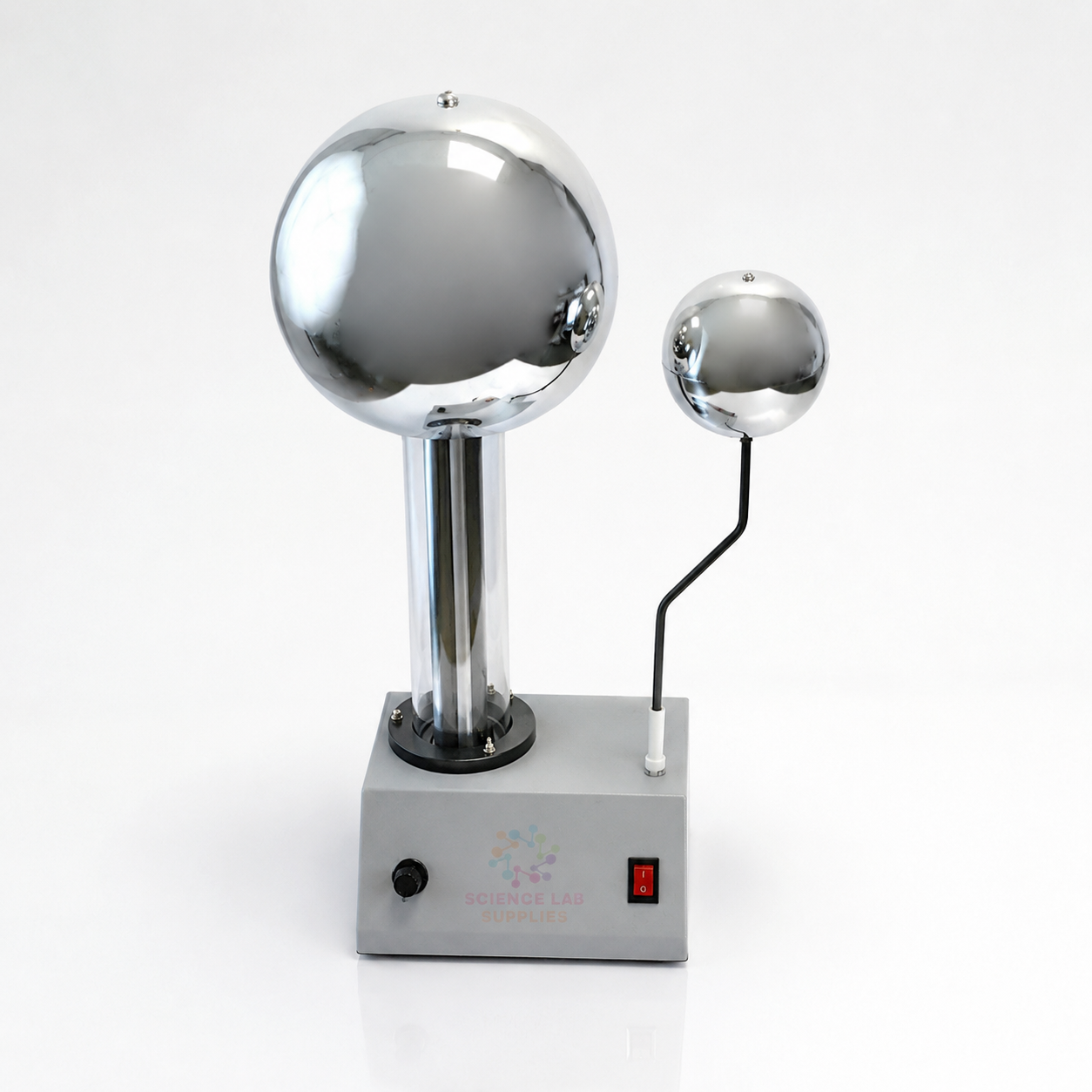

The Generator consists of a dome supported by a pillar and a rubber belt driven by an electric motor concealed in the metal base.
Scince Lab Supplies Static electrical charge is produced by friction between this band and two rollers.
The charge is removed from the belt by a metal gauze and stored in the dome.
A cover is provided to keep the Van de Graaff free from dust when not in use.

• Operating Voltage: 220 to 240V AC (with 5A cartridge fuse)
• Dome Capacitance: (approx) 15 pF
• Total Height: 500 mm
• Maximum Spark Length: (approx) 50 mm
• Diameter of Conducting Spheres: 100 mm
• Maximum (intermittent) current: (approx) 6 µA
• Base (max) Dimensions: 218 x 182 x 93 mm
• Diameter of Generator Dome: 220 mm
