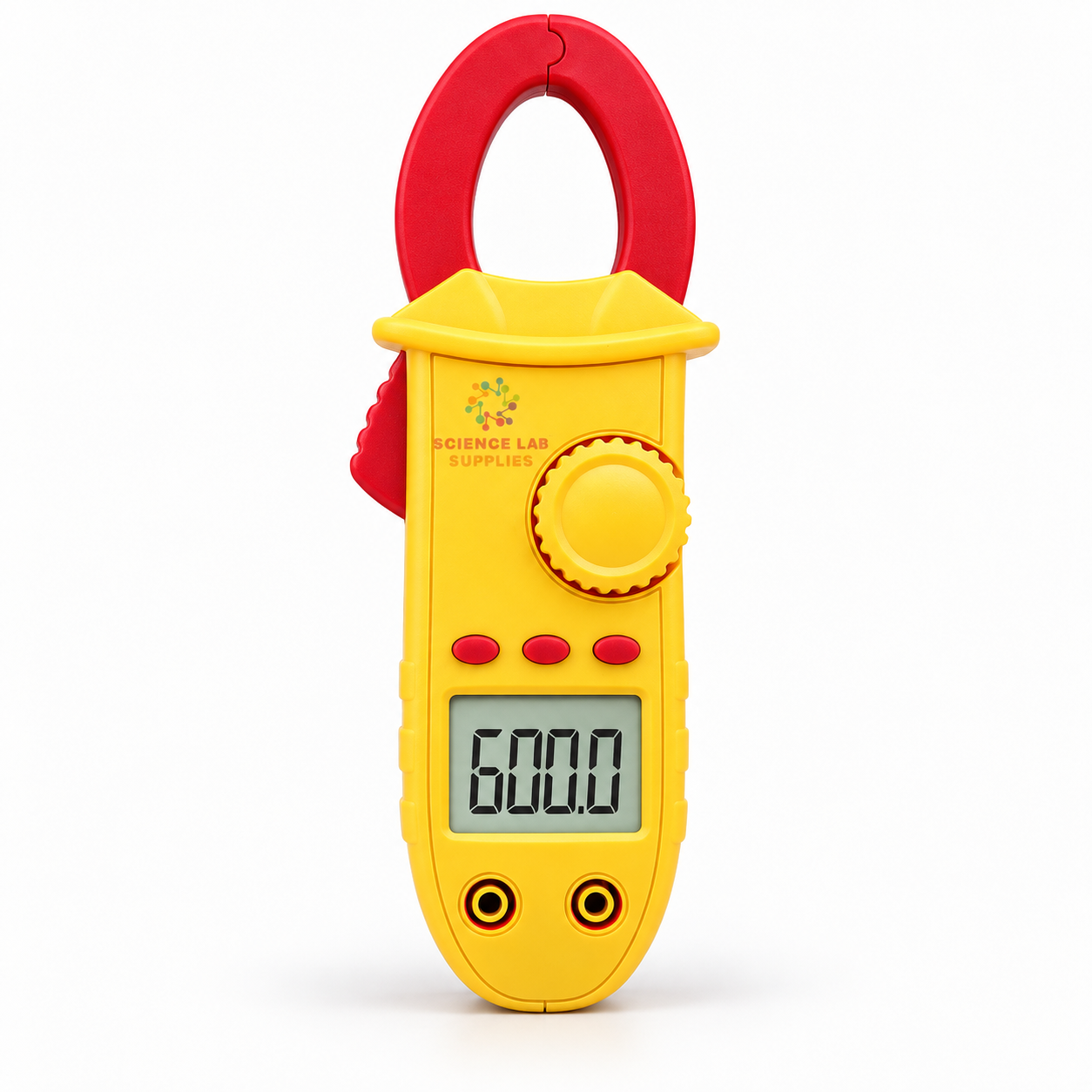

3 5/6 6000 Count 600AAC Trms Auto-ranging Clamp meter with Temperature, Frequency, Duty Cycle, NCV, Capacitance Manufacturer,Supplier and Exporter in China
Product Code : EL-TAME-13348
Quick answer: The 3 5/6 6000 Count 600AAC Trms Auto-ranging Clamp meter with Temperature, Frequency, Duty Cycle, NCV, Capacitance is manufactured by Science Lab Supplies, a China-based exporter of test and measurement instruments for engineering laboratories, and forms part of the Test and Measurement Equipment catalogue used by engineering colleges and technical institutes in engineering test and measurement laboratories. 3 5/6 digit 6000 counts Trms LCD Display Auto Ranging, Data Hold, APO, NCV, Temperature, Frequency, Capacitance Diode, Continuity, Resis-tance Backlight In engineering test and measurement laboratories, the 3 5/6 6000 Count 600AAC Trms Auto-ranging Clamp meter with Temperature, Frequency, Duty Cycle, NCV, Capacitance is typically used for structured demonstrations and student practicals, giving engineering departments a reliable tool for repeatable results.
3 5/6 digit 6000 counts Trms LCD Display Auto Ranging, Data Hold, APO, NCV, Temperature, Frequency, Capacitance Diode, Continuity, Resis-tance Backlight
|
Ranges |
|
|
DC Voltage |
6V/60V/600V |
|
Accuracy |
± (0.8%+3dgts) on 6V - 60V |
|
|
± (1.0%+3dgts) on 600V |
|
AC Voltage |
6V/60V/600V |
|
Accuracy |
± (1.5%+5dgts) on all range |
|
AC Current |
6A/60A/600A |
|
Accuracy |
± (3.0%+20dgts) on 6A |
|
|
± (3.0%+5dgts) on 60A |
|
|
± (3.0%+8dgts) on 600A |
|
Resistance |
600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ |
|
Accuracy |
± (1.0%+3dgts) on 600Ω - 6MΩ |
|
|
± (1.5%+3dgts) on 60MΩ |
|
Capacitance |
60nF/600nF/6µF/60µF/600µF/1000µF |
|
Accuracy |
± (3.0%+18dgts) on 10nF |
|
|
± (1.0%+3dgts) on 100nF - 1000µF |
|
Temperature |
0°C - 600°C / 32°F-1112°F |
|
Accuracy |
± (1.0%+3dgts) |
|
Frequency |
10Hz/100Hz/1KHz/100KHz/ |
|
|
1MHz/10MHz |
|
Accuracy |
± (0.8%+3dgts) on all ranges |
|
Duty Cycle |
0.1% - 99.9% |
|
Resolution |
± (0.1%) on all ranges |
|
Jaw Size |
28mm |
|
Power |
AAA 1.5V (2 Batteries) |
|
Low Battery |
“ ” is indicated |
|
Dimensions |
185 x 51 x 25mm (approx.) |
|
Weight |
180gms. Incl. Battery (approx.) |
|
Accessories |
Test Leads, Carrying Case |
|
|
Operational Manual |
|
|
K-Type Thermocouple Lead |
Related Products
Exact technical specifications, materials and certifications should be confirmed with our team before ordering. Models are updated from time to time, so please contact us for the current product datasheet.
