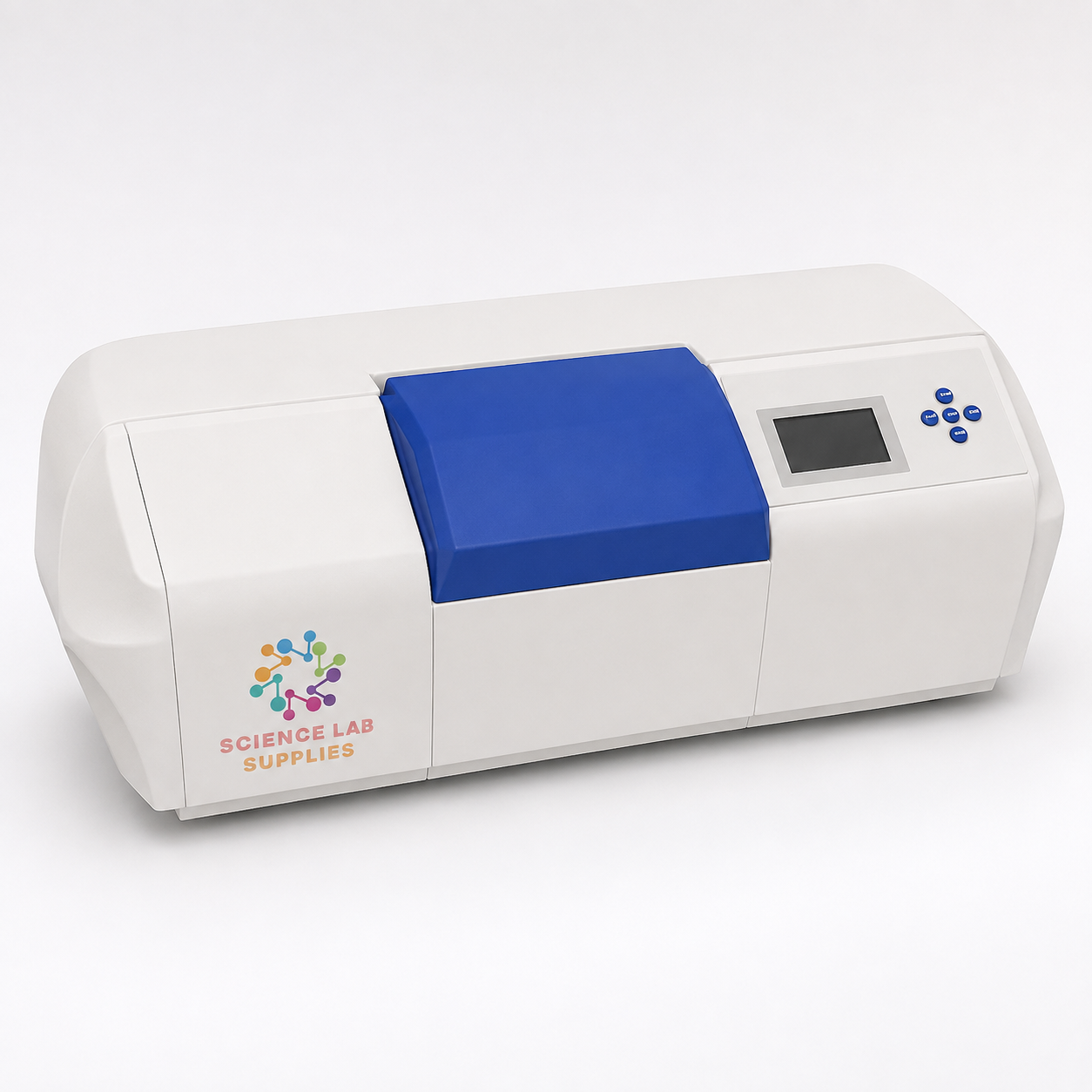

Digital Automatic Polarimeter With Software Manufacturer,Supplier and Exporter in China
Product Code : EL-CE-13285
Quick answer: Technical Specification Test Modes : optical rotation, sugar degree Light source : LED Wavelength : 589.44nm Measurement : ±45° (optical rotation) ±120° Z (sugar) Minimum indicating value : 0.001° (optical rotation) 0.01° Z (sugar) Accuracy : ±(0.01 + measurement value x 0.05%)° (optical rotation)±(0.03 + measurement value x 0.05%)° Z (sugar Repeatability : <0.002° (optical rotation) Display LCD Test tube : 200mm, 100mm Sample transmittance : > 1% Interface : Rs232 Operation voltage : 220V ± 22V,50Hz Overall Dimensions : 730mm x 480mm x 470mm Weight (Grass) : 36kg Software : Features Automatic Polarimeter instrument used to measure specific optical rotation of optically active substance Measuring optical rotation and sugar degree Built in auto controlling system with servomechanism Calculation of average values Measurement of dark colored sample Rs232 Interface Measuring Modes Optical Rotation Sugar Degree Yes 3. Fuse 4.
Technical Specification
Test Modes : optical rotation, sugar degree
Light source : LED
Wavelength : 589.44nm
Measurement : ±45° (optical rotation) ±120° Z (sugar)
Minimum indicating value : 0.001° (optical rotation) 0.01° Z (sugar)
Accuracy : ±(0.01 + measurement value x 0.05%)° (optical rotation)±(0.03 + measurement value x 0.05%)° Z (sugar
Repeatability : <0.002° (optical rotation)
Display LCD
Test tube : 200mm, 100mm
Sample transmittance : > 1%
Interface : Rs232
Operation voltage : 220V ± 22V,50Hz
Overall Dimensions : 730mm x 480mm x 470mm
Weight (Grass) : 36kg
Software :
Features
Automatic Polarimeter instrument used to measure specific optical rotation of optically active substance
Measuring optical rotation and sugar degree
Built in auto controlling system with servomechanism
Calculation of average values
Measurement of dark colored sample
Rs232 Interface
Measuring Modes
Optical Rotation
Sugar Degree
Yes
3. Fuse
4. Instruction mannual
Optional Accessories
1. Sample Tubes 100mm, 200mm
