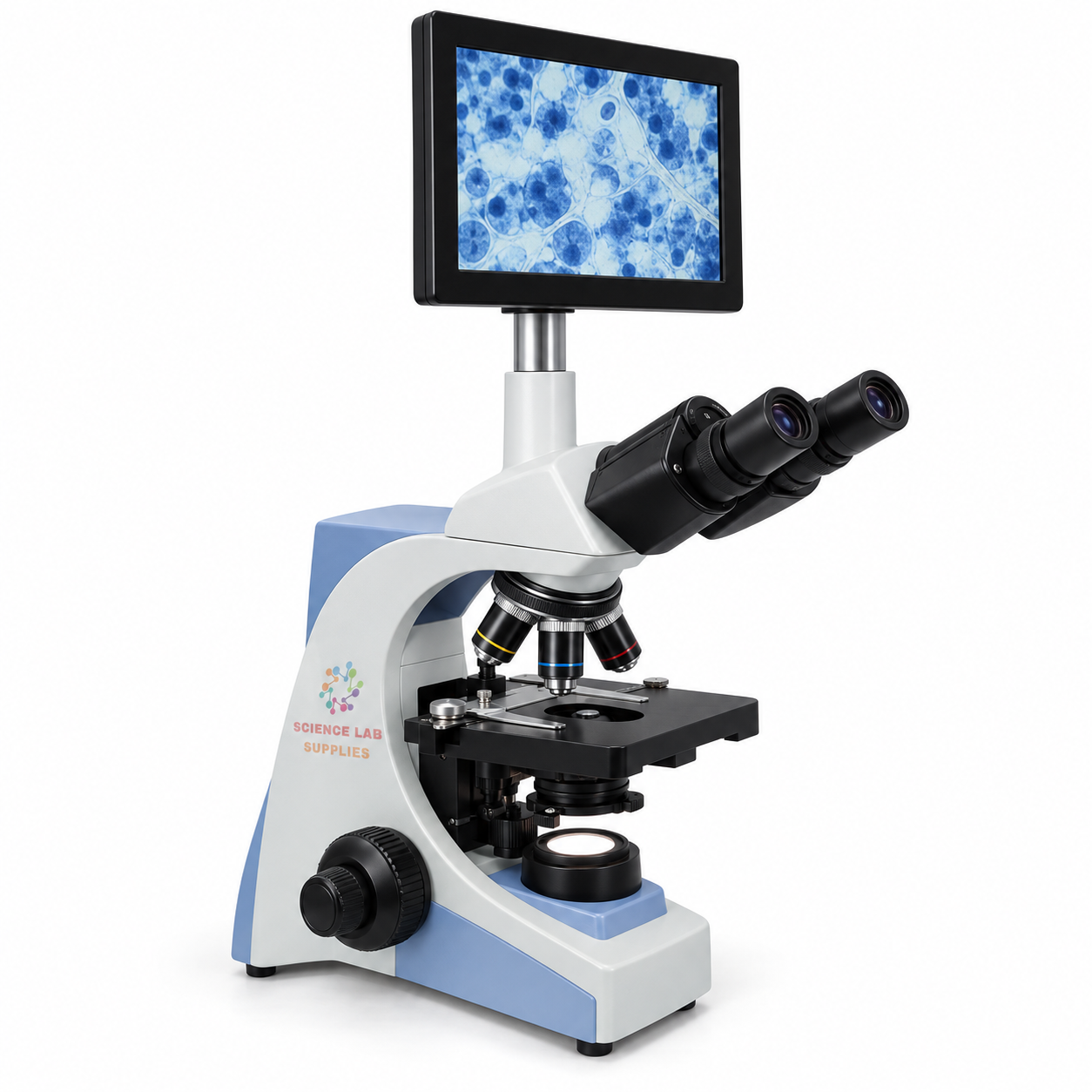

Digital Microscope with Binocular Head and LCD Screen, 30 Degrees Manufacturer,Supplier and Exporter in China
.png)
Product Code : EL-SM-15879
| New improved ergonomic design that helps ease of use for long working hours. Also with easy replace bulb mechanism. | |
| Body: | 30 degrees inclined binocular head rotatable through 360 degrees. Quadruple nose piece with accurate centering and positive click stops, revolves on high grade steel balls & dust proof carrier to ensure smooth rotation & maintain parfocality. |
| Stage: | Mechanical stage of 130x140mm. Low co-axial drive controls for X-Y movement with fully graduated vernier scale for manipulation of specimen slide. |
| Focussing: | Co-axial coarse and fine focussing for easy manipulation based on four stage reduction gear system & travelling on ball bearing guide ways with virtually no wear, tear and free from backlash. Tension adjustment ring on one side. |
| Illumination: | 6V-20W halogen lamp or 3W LED white light illumination, operating on 220/110 Volts |
| Condenser: | Two lens Abbe condenser N.A. 1.25 with filter support, movable by rack & pinion arrangement. |
| Eye Piece: | Two paired eyepiece sets, one is Wide Field 10X and the other is either Huygenian 5X or 15X. |
| Objective: | Achromatic DIN Standard 45mm 4X, 10X, 40X SL and 100X SL oil immersion. |
| Box: | Supplied in a plywood packing with essential accessories namely eye guard, filters, immersion oil, vinyl cover, cleaning paper, cleaning brush, dust blower. Provided with inbuilt camera with high resolution LCD screen of 8" or 10". Having AV & USB port. |
