Fluorescent Microscope, Advanced Research Manufacturer,Supplier and Exporter in China
Product Code : EL-BM-15896
Quick answer: Excellent fluorescent image with high resolution fluorescent objectives. Protect the light leak with advanced lamp housing.
- Excellent fluorescent image with high resolution fluorescent objectives.
- Protect the light leak with advanced lamp housing.
- Widely used in venereal disease examination and immuneless diagnosis.
- Perfect image with infinite plan fluorescent objective.
- More stable power supply, digital display and timer.
Body: Compensation free trinocular head inclined at 30°, interpupillary distance 48-75mm with backward quintuple nosepiece.
Stage: Double layers mechanical stage 185x142/75x55mm.
Focussing: Standard co-axial coarse and fine focussing for easy manipulation based on four stage reduction gear system & travelling on ball bearing guide ways with virtually no wear, tear and free from backlash. Tension adjustment ring on one side.
Illumination: External illumination, aspherical collector, halogen lamp 6V/30W.
Eyepiece: Extra Wide Field Eyepiece EW10X/22.
Objective: 4X, 10X, 20X, 40X and 100X.
Condenser: Swing Condenser NA 0.9/0.25.
Reflected Light Source:
| Excitation | Dichroic Mirror | Barrier Filter |
| BP460~490 | DM500 | BA520 |
| BP510~550 | DM570 | BA590 |
Lamp: 100W HBO Ultra Hi-voltage spherical mercury lamp.
Protection barrier: Barrier to resist the ultraviolet light.
Power Supply: Power supplier NFP-1, 220V/110V interchangeable.
Immersion Oil: Fluorescent free oil.
Box: Supplied in thermocol packing.
Optional Accessories:
Objective Infinite Plan Achromatic Objective 20X
Infinite Plan Fluorescent Objective 4X, 10X, 20X, 40X and 100X.
Photo Attachment.
Video Adapter
Optional Reflected Light Source:
| Excitation | Dichroic Mirror | Barrier Filter |
| BP460~495 | DM505 | BA510-550 |
| BP330~385 | DM400 | BA420 |
| BP400~410 | DM455 | BA455 |
Neutral ND25/ ND6 Filter
Centering Target
Related Products

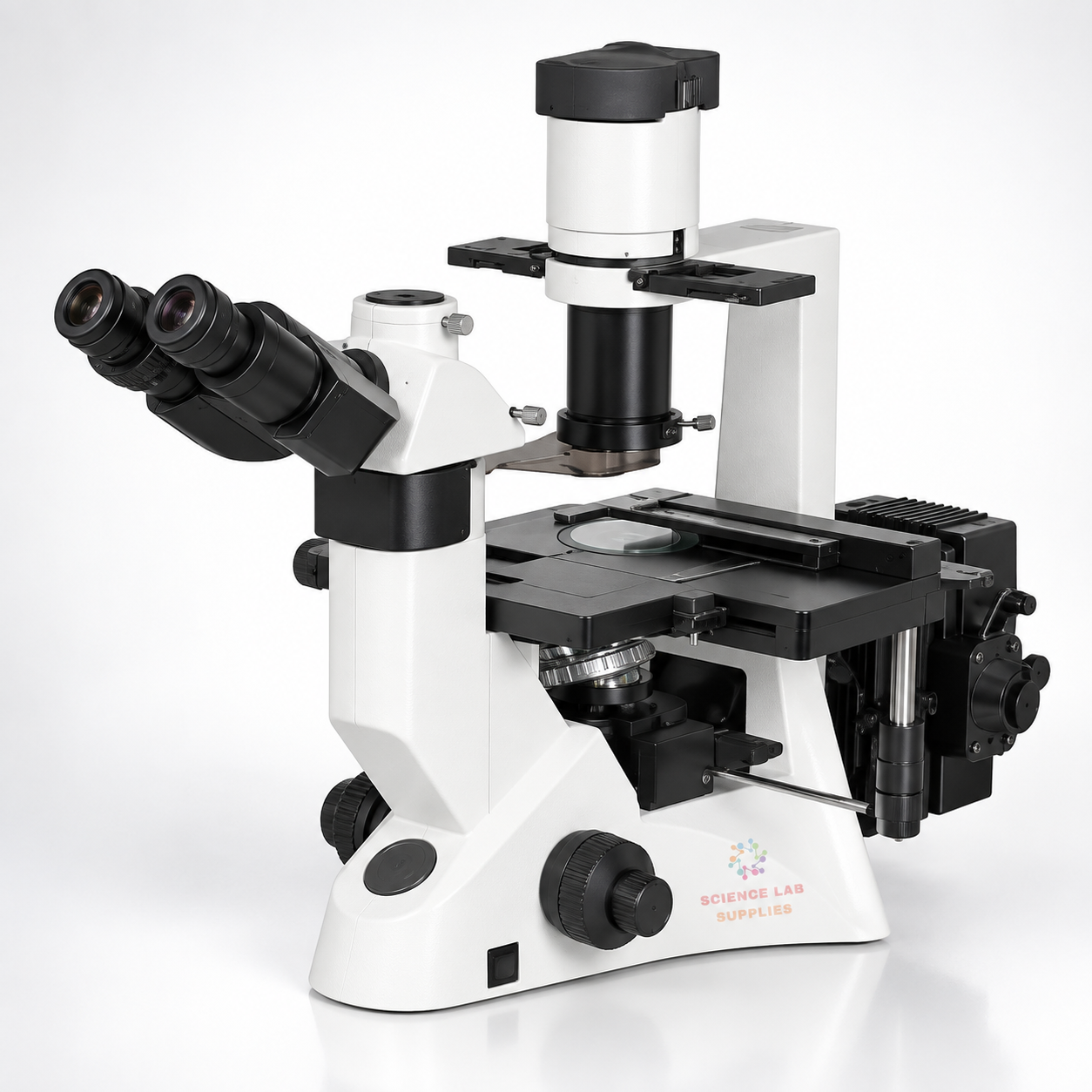

See also Inverted Fluorescent Microscope, Microslide Viewer, Bio Viewer with Slides, Stereo Zoom Microscope 30 degrees with LED (1:4) from the same Binocular Microscopes range.
Related Categories
Exact technical specifications, materials and certifications should be confirmed with our team before ordering. Models are updated from time to time, so please contact us for the current product datasheet.
