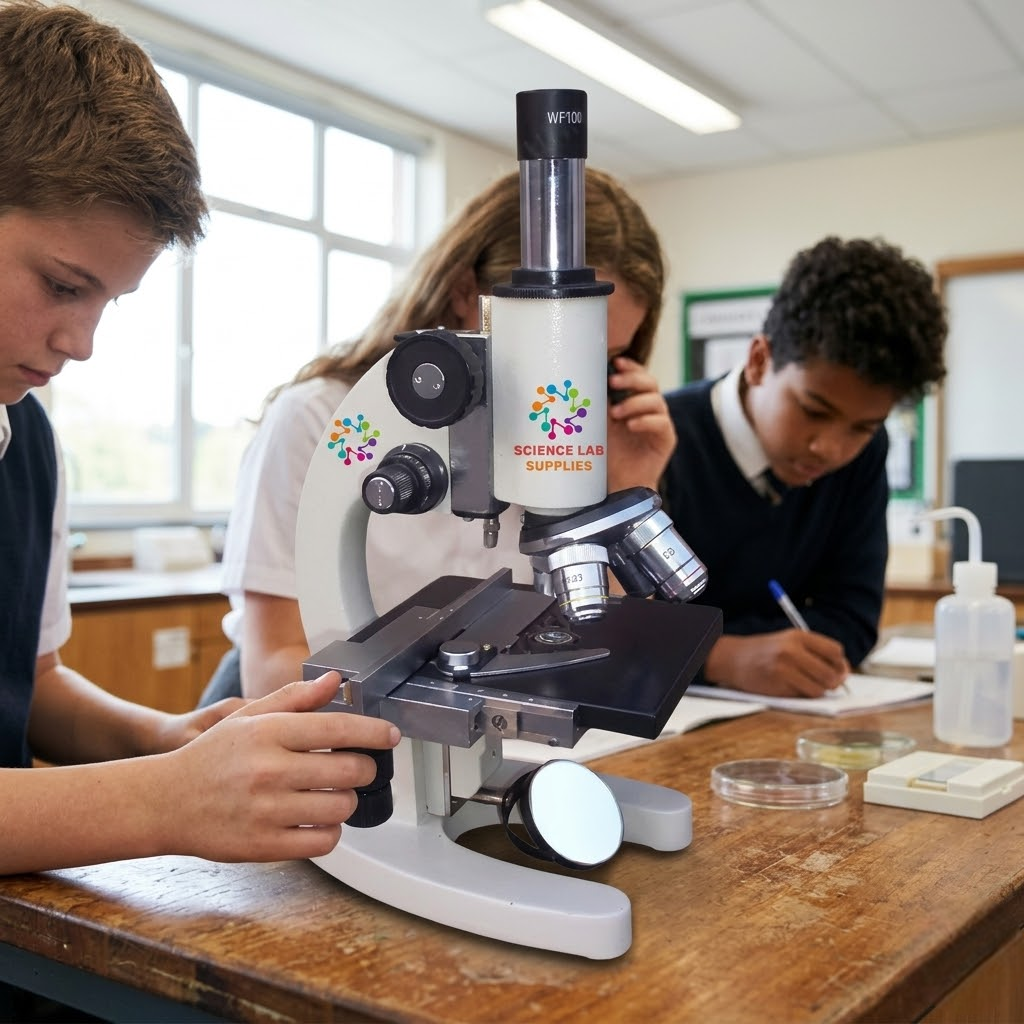

Product Code : EL-M-11427
Quick answer: As a school laboratory microscopes supplier, Science Lab Supplies manufactures and exports the Pathological Microscope, part of our Microscopes range used across secondary school, higher secondary and undergraduate science laboratories. Safety stopper to prevent damage to slides and objectives.
As a school laboratory microscopes supplier, Science Lab Supplies manufactures and exports the Pathological Microscope, part of our Microscopes range used across secondary school, higher secondary and undergraduate science laboratories.
Safety stopper to prevent damage to slides and objectives.
Fixed square stage of 110×110 mm, fitted with detachable graduated mechanical stage.
Pressure die-cast parts to ensure strength and uniformity.
Well proportioned stable, rigid and vertical body inclinable through 90°.
Mechanical tube length 160 mm.
Separate knobs for coarse and fine focusing. Coarse knobs are with tension adjustment arrangement.
Fine motion knob is graduated to read to 0.002 mm.
Triple revolving nose-piece with international standard threads, with click stops ensuring correct centering.
Sub-stage plano concave daylight mirror reflector in metal mount, replaceable by an electrical illuminator.
A sub-stage iris diaphragm with Abbe condenser N.A.1.2 which moves up and down with rack and pinion motion.
Smooth black or scratch resistant grey epoxy finish.
Dust cover and cleaning cloth.
Packed in moulded styrofoam box or wooden cabinet with lock and key.
High grade achromatic objectives and Huygenian eye-pieces for sharp and aberration free image.
Optics
Specifications
| Specification | Value |
|---|---|
| Product code | EL-M-11427 |
| Objectives | Achromatic x10, x40 (spring loaded) and x100 (spring loaded) oil immersion |
| Eye Pieces | Huygenian x5, x10, x15 (any two) |
Institutions sourcing microscopes for their science laboratories use the Pathological Microscope to support hands-on learning aligned with school and college syllabi. It complements other Microscopes range items to build a complete teaching set for science departments.
Quality control checks are carried out before dispatch to confirm the Pathological Microscope meets stated specifications, helping schools standardise equipment quality across multiple lab or classroom setups.
Related Products
See also Student Microscope, Clinical Polarizing Biological Microscope, Junior Microscope from the same Microscopes range.
Related Categories
Exact technical specifications, materials and certifications should be confirmed with our team before ordering. Models are updated from time to time, so please contact us for the current product datasheet.
