Product Code : SCL-E-11379
Science Lab Supplies is a leading Relay Demonstration Lab Equipment Manufacturer,and suppliers in China, Relay Demonstration Lab Equipment Manufacturer,and suppliers in South Africa.Relay Demonstration Lab Equipment Suppliers in Mozambique,Relay Demonstration in Supplier Kenya, Southren African region, Botswana, Lesotho, Malawi, Angola, Namibia, Zambia, Zimbabwe. Djibouti, Ethiopia, Kenya, Madagascar, Mauritius, Rwanda, Seychelles, Tanzania and Uganda.
A useful property of this unit is that the circuit powering the coil is easily seen to be completely separate from the circuit switched on by the relay.
This is one of the reasons relays are used where a safe low voltage circuit can be used to control a high voltage circuit.

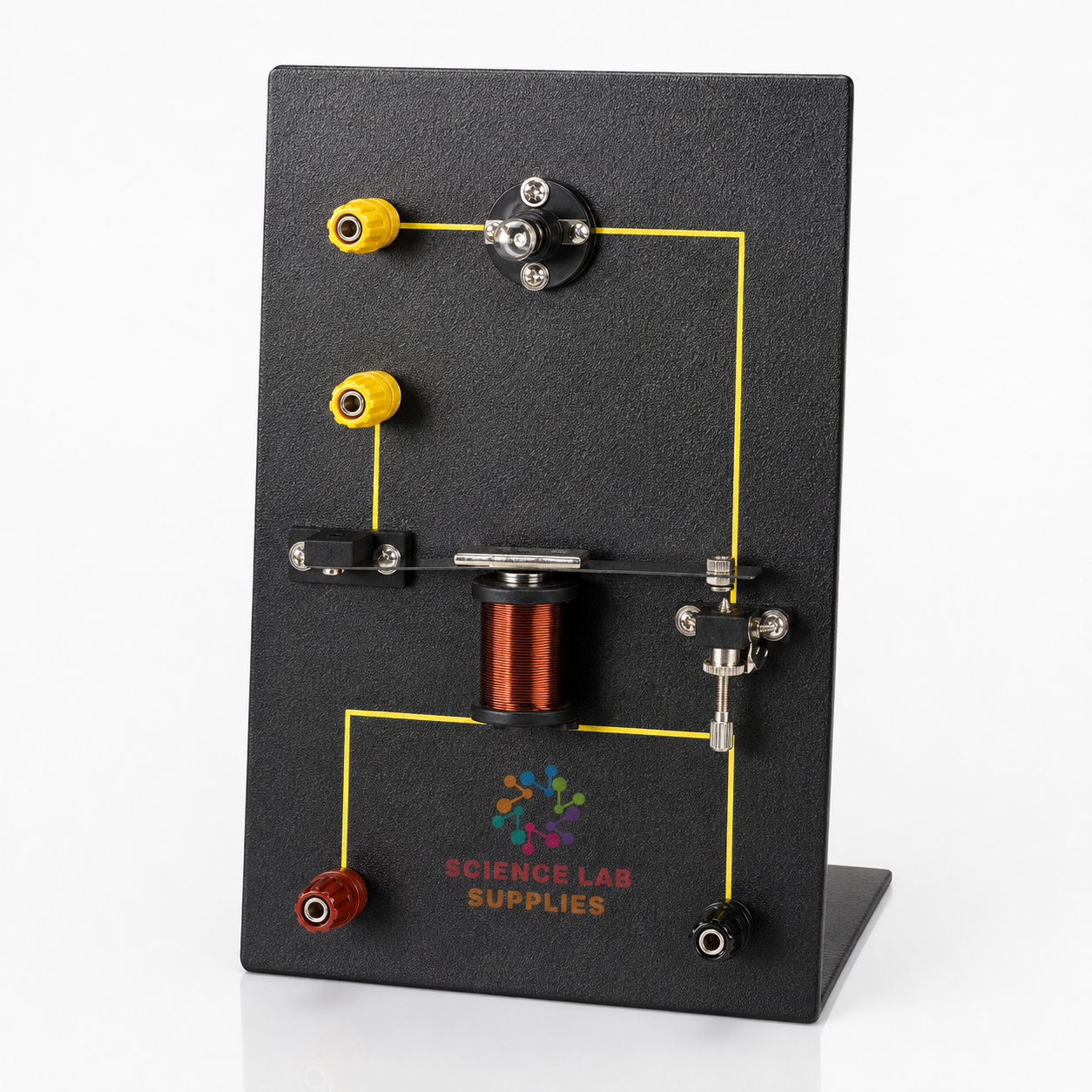

The Relay Demonstration Unit Scince Lab Supplies allows the investigation and study of how a relay functions, in a clear and practical manner.
This field attracts the iron armature whose end makes the contact, completing the circuit and illuminating the lamp.
When the current is switched off, the contact will open again, switching the circuit off.
When a current flows through the coil an electro-magnetic field is produced.
• Switched supply voltage: 12 V Max
• Control input voltage: 2 V DC
