Bell in a Jar Experiment Manufacturer,Supplier and Exporter in China
Product Code : EL-VAW-11280
Science Lab Supplies is a physics lab equipment manufacturer and exporter based in Jining City, Shandong Province, China, supplying the Bell in a Jar Experiment as part of our Vibrations and Waves range for schools, colleges and STEM training institutes across China and worldwide.

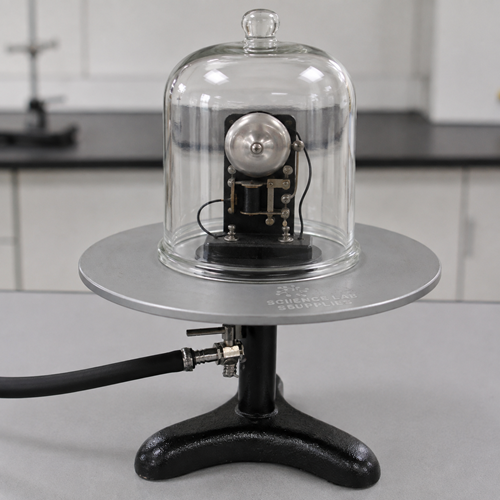

The pump plate is lightweight aluminium, mounted on a heavy tripod base, with a tube connection to the central pillar to evacuate air from the bell jar on top.
A stopcock allows the chamber to be sealed, allowing the vacuum to be kept when turning off the pump.
An improved version of the classic Science Lab Supplies Bell in a Jar experiment.
The bell jar is robust acrylic which is safe in the event of implosion, and has a flat flange to ensure a good seal with the pump plate.
The base is fitted with a rubber sheet which ensures a good seal between the jar and pump plate, without the need for vacuum grease.
The bell is suspended by wires to reduce conduction of sound to the bell jar. Connection is by 4 mm sockets on the top bung.
The bell can be heard getting quieter as the air is evacuated.
Then, by closing the tap, turning off and disconnecting the pump, and then slowly allowing the air back in, the bell can be heard getting louder, as air is required to conduct the sound.
The high-quality bell operates on 4-6 V DC or AC. Requires a suitable vacuum pump, and heavy-walled vacuum/pressure tubing.
Dimensions:
Bell Jar
• Internal diameter 140 mm
• External diameter flange 180 mm
• Height 260 mm to neck
Pump Plate
• Diameter 250 mm
• Height 195 mm
Physics teachers and lab coordinators rely on equipment like the Bell in a Jar Experiment to deliver curriculum-aligned vibrations and waves demonstrations, making it a practical addition to any school science lab equipment inventory, college physics laboratory or STEM resource centre.
Bulk and OEM orders for the Bell in a Jar Experiment are supplied to international schools, science equipment distributors and government education programmes, with export packing suited for consolidated shipment across China and worldwide.
See also the Demonstration Loudspeaker for related Vibrations and Waves experiments, or browse the full Vibrations and Waves range. Contact our team via Contact Us for an indicative export quotation.
