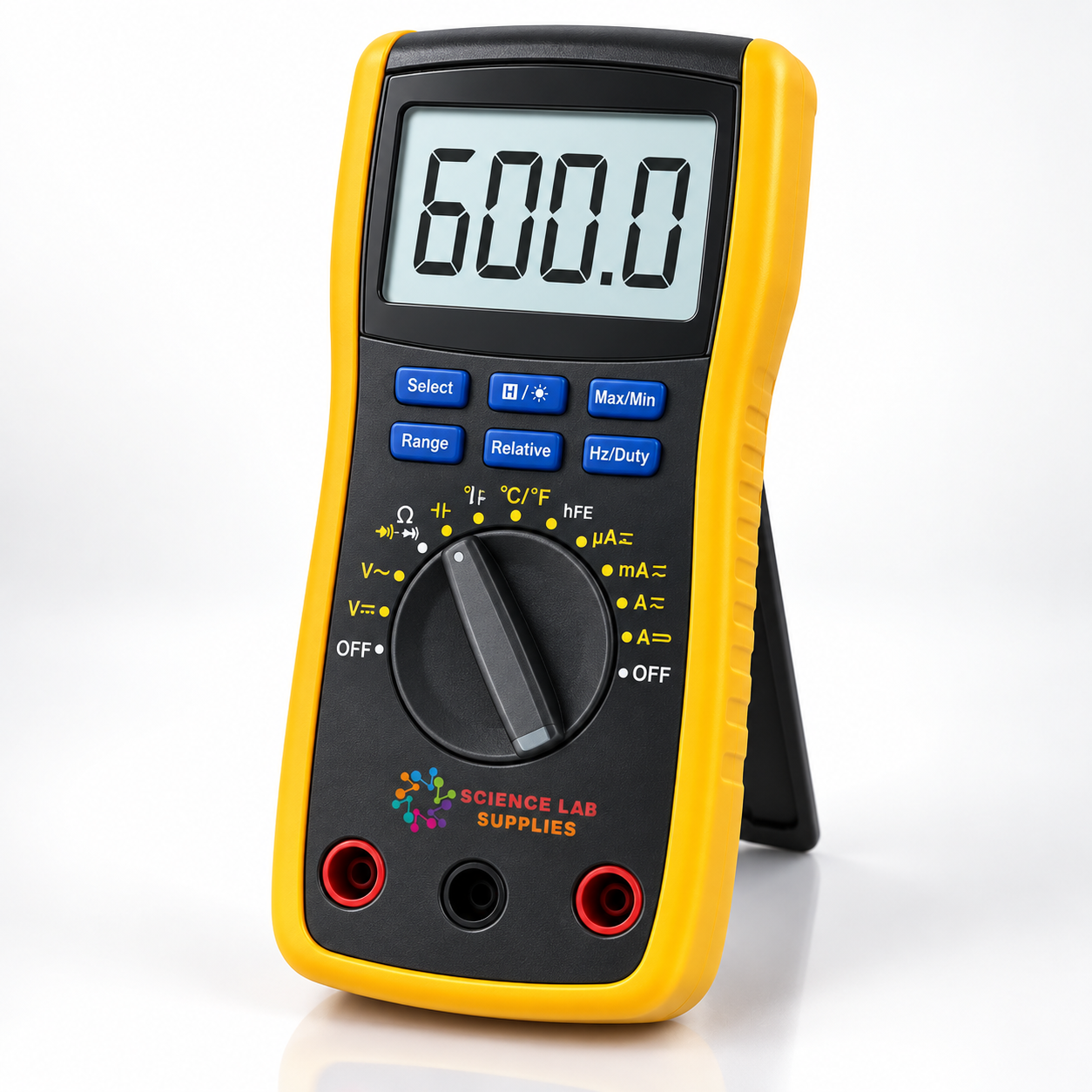

3 5/6 6000 Counts Trms Auto-ranging Multimeter with Temperature, Capacitance, Frequency, Duty Cycle, Data Hold, Back Light, hFE Test, Max Hold, Relativity Manufacturer,Supplier and Exporter in China
Product Code : EL-TAME-13349
Quick answer: The 3 5/6 6000 Counts Trms Auto-ranging Multimeter with Temperature, Capacitance, Frequency, Duty Cycle, Data Hold, Back Light, hFE Test, Max Hold, Relativity is manufactured by Science Lab Supplies, a China-based exporter of test and measurement instruments for engineering laboratories, and forms part of the Test and Measurement Equipment catalogue used by engineering colleges and technical institutes in engineering test and measurement laboratories. 3 5/6 digit 6000 counts Trms AC / DC Auto Ranging, Data Hold, APO, Backlight Temperature, Frequency, Capacitance Diode, Continuity, Resistance Check.
3 5/6 digit 6000 counts Trms AC / DC Auto Ranging, Data Hold, APO, Backlight Temperature, Frequency, Capacitance Diode, Continuity, Resistance Check
|
Ranges |
|
|
DC Voltage |
6V/60V/600V |
|
Accuracy |
± (0.8%+3dgts) on 6V - 60V |
|
|
± (1.0%+5dgts) on 600V |
|
AC Voltage |
6V/60V/600V |
|
Accuracy |
± (1.5%+5dgts) on all ranges |
|
DC Current |
60A/600A |
|
Accuracy |
± (2.5%+5dgts) on 60A |
|
|
± (2.5%+8dgts) on 600A |
|
AC Current |
60A/600A |
|
Accuracy |
±(2.5%+5dgts) on 60A |
|
|
±(2.5%+8dgts) on 600A |
|
Resistance |
600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ |
|
Accuracy |
± (1.0%+3dgts) on 600Ω - 6MΩ |
|
|
± (1.5%+3dgts) on 60MΩ |
|
Capacitance |
60nF/600nF/6µF/60µF/600µF/1000µF |
|
Accuracy |
± (3.0%+18dgts) on 10nF |
|
|
± (1.0%+3dgts) on 100nF - 1000µF |
|
Temperature |
0°C - 600°C / 32°F-1112°F |
|
Accuracy |
± (1.0%+3dgts) |
|
Frequency |
10Hz/100Hz/1KHz/100KHz/1MHz/10MHz |
|
Accuracy |
± (0.8%+3dgts) on all ranges |
|
Jaw Size |
28mm |
|
Power |
AAA 1.5V (2 Batteries) |
|
Low Battery |
“ ” is indicated |
|
Dimensions |
185 x 90 x 35mm (approx.) |
|
Weight |
160gms. Incl. Battery (approx.) |
|
Accessories |
Test Leads, Carrying Case |
|
|
Operational Manual |
|
|
K-Type Thermocouple Leads |
Related Products
Exact technical specifications, materials and certifications should be confirmed with our team before ordering. Models are updated from time to time, so please contact us for the current product datasheet.
