3 5/6 Dgt 6000 Count 1000AAC Clamp meter with Frequency, Temperature, Capacitance Manufacturer,Supplier and Exporter in China

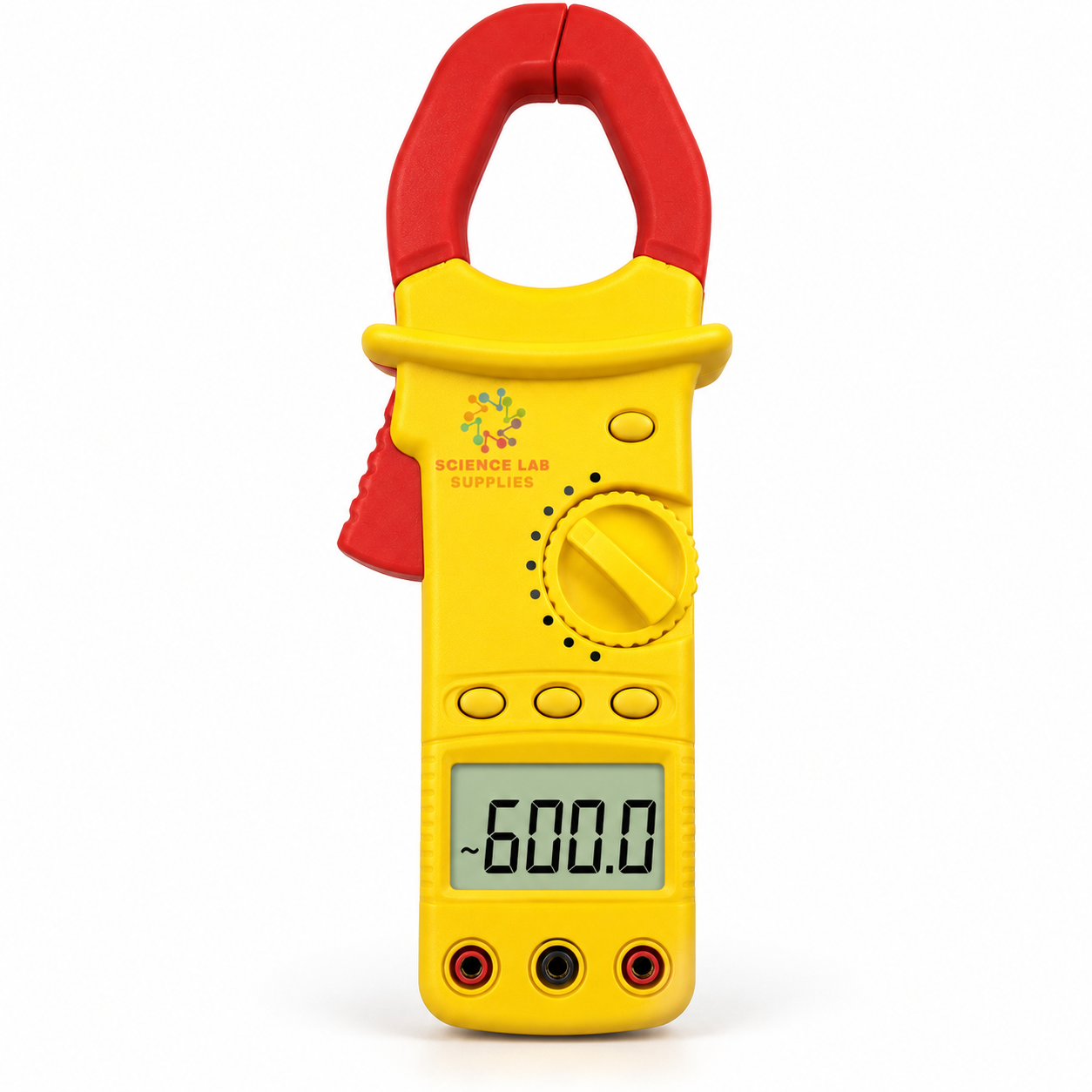

3 5/6 Dgt 6000 Count 1000AAC Clamp meter with Frequency, Temperature, Capacitance

Product Code : EL-TAME-13350

3 5/6 digit 6000 counts Trms LCD Display Auto Ranging, Data Hold, APO, Backlight Temperature, Frequency, Capacitance Diode, Continuity, Resistance, Duty Cycle



Ranges



DC Voltage

600mV/6V/60V/600V/1000V

Accuracy

± (0.8%+5dgts) on 600mV



± (0.8%+5dgts) on 6V - 600V



± (1.0%+5dgts) on 1000V

AC Voltage

600mV/6V/60V/600V/750V

Accuracy

± (1.2%+8dgts) on 600mV



± (1.2%+6dgts) on 6V - 600V



± (1.2%+8dgts) on 750V

AC Current

60A/600A/1000A

Accuracy

± (2.5%+10dgts) on all ranges

Resistance

600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ

Accuracy

± (1.5%+5dgts) on all ranges

Capacitance

60nF/600nF/6µF/60µF/400µF/20mF

Accuracy

± (8.0%+5dgts) on all ranges

Frequency

60Hz/600Hz/6KHz/600KHz/6MHz/60MHz

Accuracy

± (1.0%+5dgts) on all ranges

Frequency

50~1KHZ (Thru Clamp)



± (1.5%+5dgts) on all ranges

Temperature

-40°C - 1370°C / 32°F-2000°F

Accuracy

± (1.0%+4dgts) on -40°-1500°C



± (2.0%+3dgts) on 150°-1370°C

Jaw Size

45mm

Power

9V Battery, NEDA 6F22 Type

Low Battery

Battery Icon is indicated

Dimensions

245 x 90 x 45mm (approx.)

Weight

360gms. Incl. Battery (approx.)

Accessories

Test Leads, Carrying Case



Operational Manual



K-Type Thermocouple Leads
