Automatic Volume Change Device For Triaxial Shear Apparatus Manufacturer,Supplier and Exporter in China
Product Code : EL-CELE-12935
Quick answer: Science Lab Supplies manufactures and exports the Automatic Volume Change Device For Triaxial Shear Apparatus as part of its Civil Engineering Lab Equipment range, supplying civil engineering lab equipment and construction materials testing apparatus to engineering colleges and construction testing labs across civil engineering departments. Every unit is built for regular use in civil engineering and construction materials laboratories and is export-packed for international shipment from our Jining City, Shandong Province facility.
This volume change gauge works on the principal of reversing the direction of ?ow when the limit of the volume change scale is reached. The number of cycle with the volume of ?uid handled in each cycle provide the total volume change, whereas the sensitivity is governed by the dia of the polythene tube used. sensitivity of 0.003ml/mm with 6 ml volume of ?uid per cycle has been realized by this sensitive volume change gauge.
The apparatus consists of volume measuring polythene tube running along both sides of a scale and connected at both ends to two mercury traps.
These traps are connected to ?ow reversal valve through a manifold. The length of the polythene tube is enough to measure 6ml volume of ?uid per cycle. A small pallet of mercury is introduced in the circuit to be used as cursor. and the movement of pallet is measured.
The unit is tested to a pressure of 20 bar (20kg/cm2)and designed for wall mounting.
Related Products

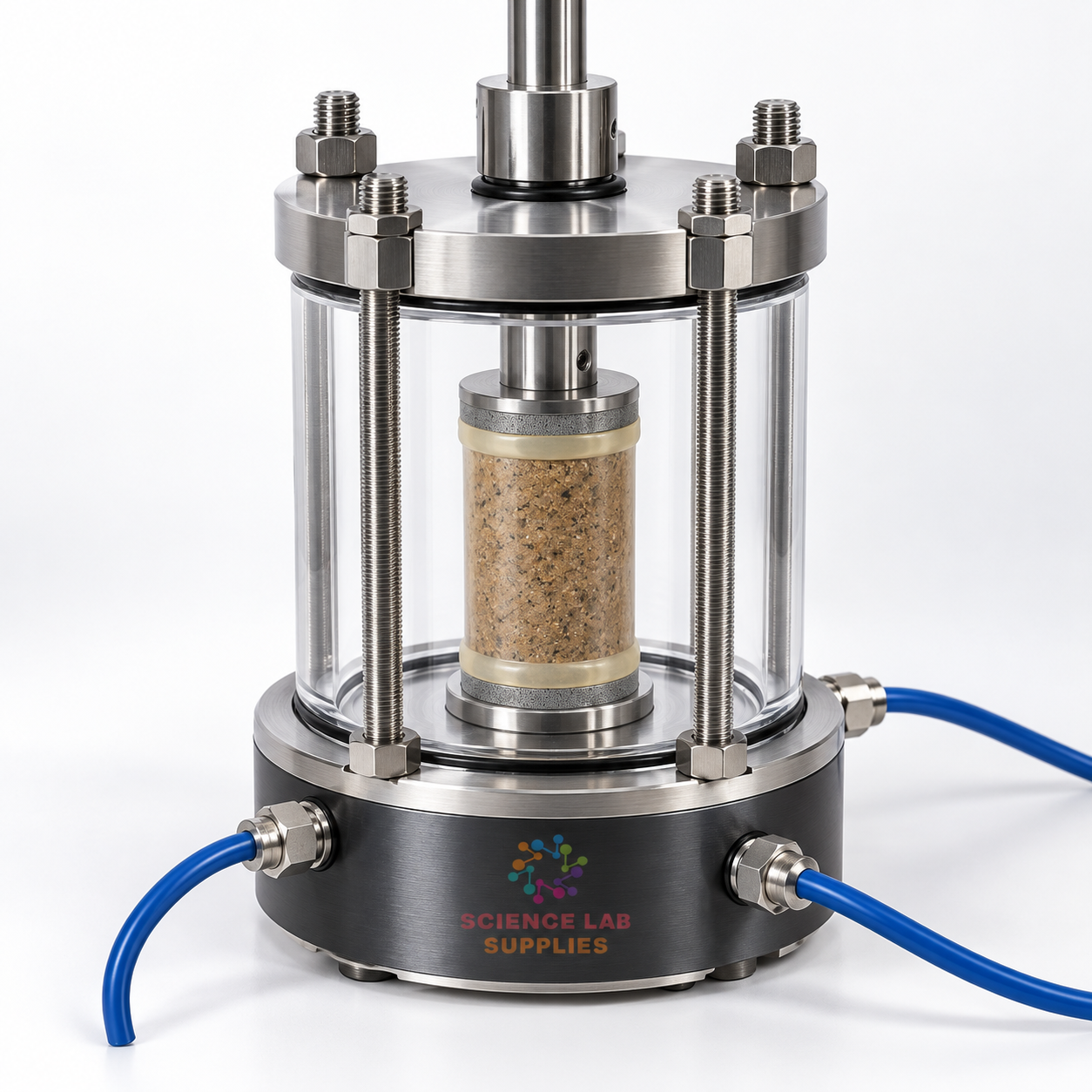

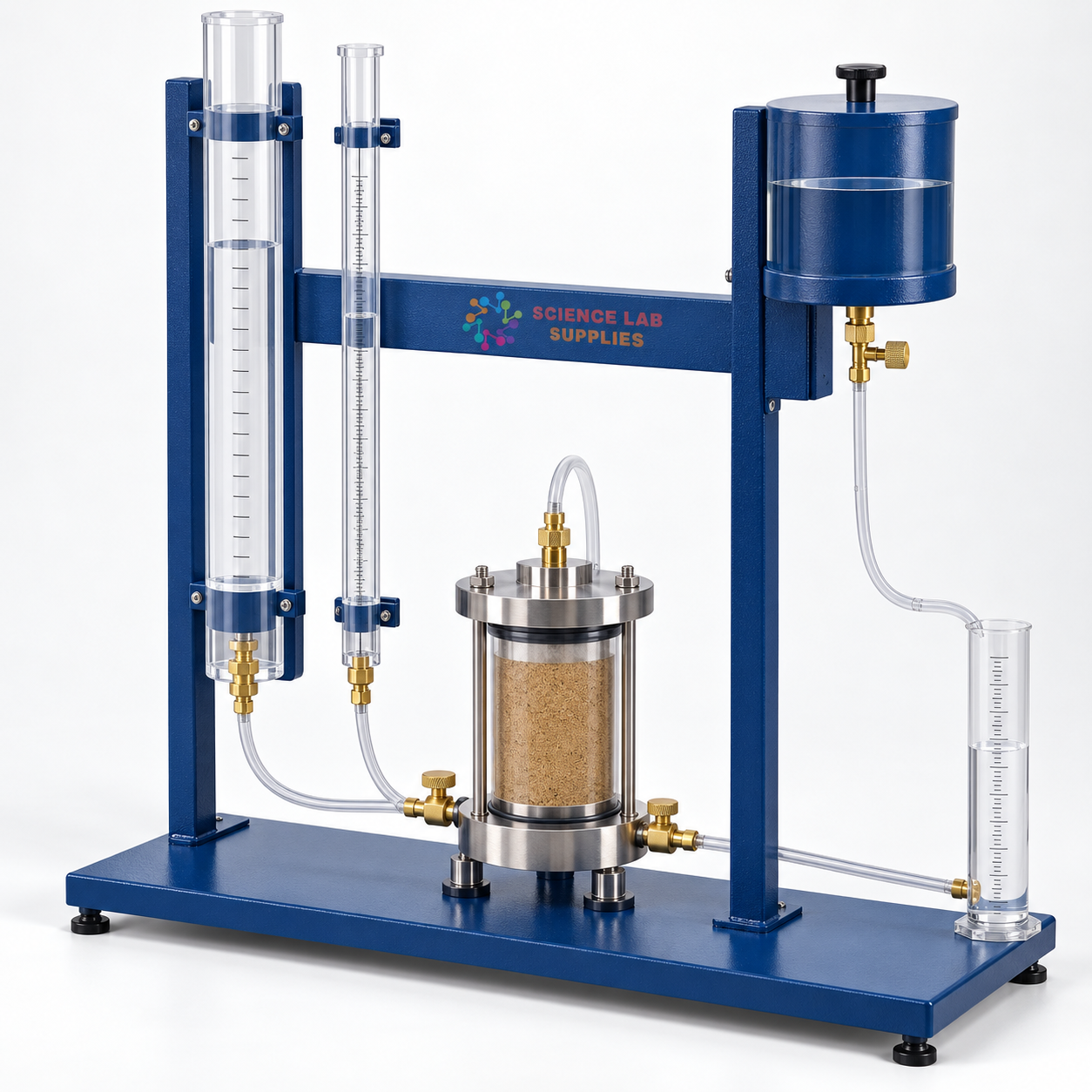

See also Soil Permeability - Constant And Variable Head Test, Ball Release for Impact Resistance of Tiles - (By Measurement of Coefficient of Restitute), Triaxial Cell - 38mm Dia For Triaxial Shear Apparatus from the same Civil Engineering Lab Equipment range.
