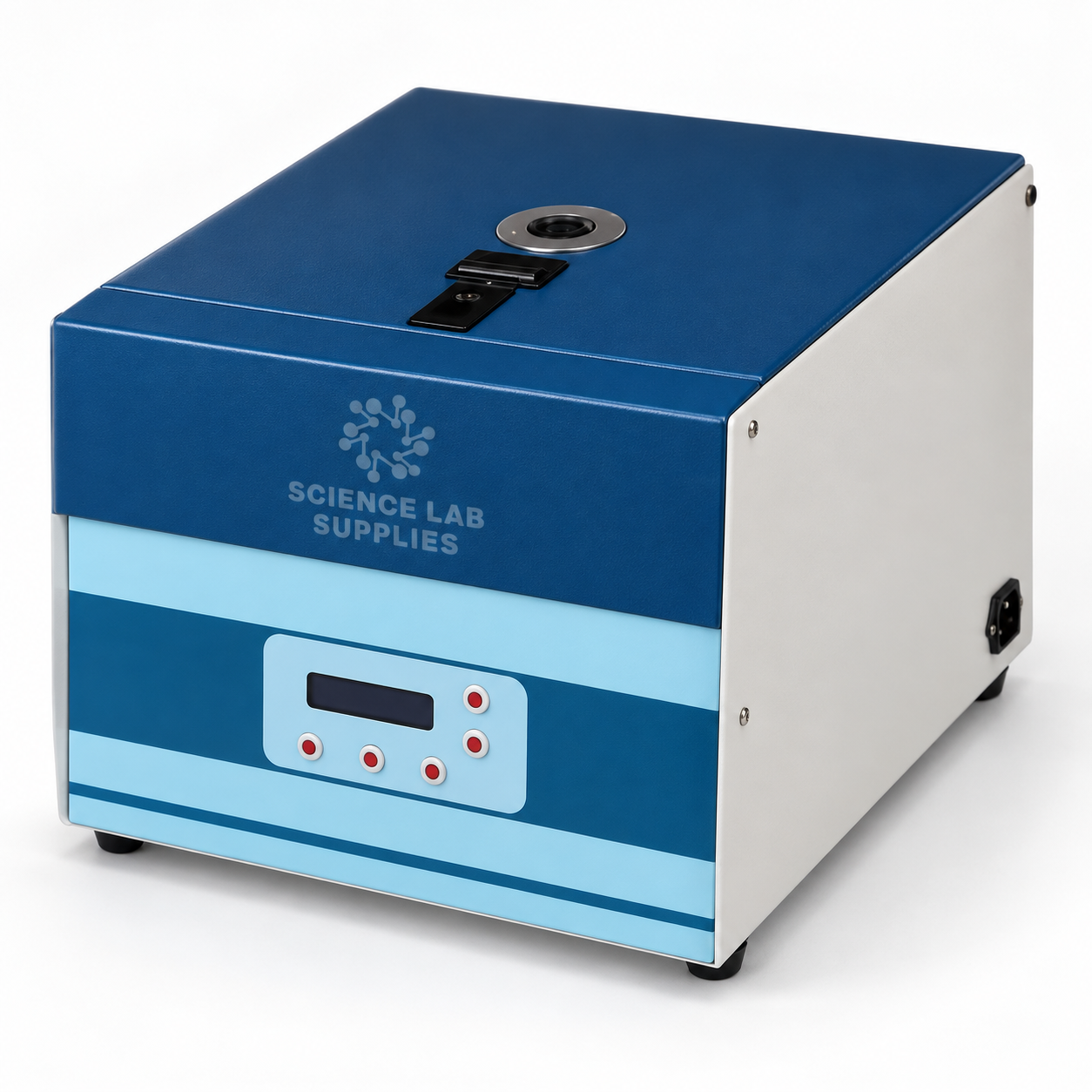

Centrifuge, Laboratory, Microprocessor Based, 4400 R.P.M. Manufacturer,Supplier and Exporter in China
.jpg)
Product Code : EL-PALE-15511
Specifications:
- Compact Laboratory Centrifuge Machine, Microprocessor based,digital.
- Body made of rust proof ABS Plastic injection moulding with metallic protection bowl.
- Lid lock for safe drive.
- Equipped with 0-99 minute timer.
- 2 lines of 16 character LCD display of r.p.m., r.c.f, for set and run time.
- Programmable speed regulator from 500 to 4400 rpm in interval of 100 rpm.
- Last test parameter recall and displays automatically on LCD.
-
Technical Parameters :
|
Max. Speed |
4400 r.p.m. |
|
Motor |
Universal Motor (with carbon brushes) 1/8H.P. |
|
Power |
AC 220V 50Hz ±10% |
|
Dimension of Machine |
L= 395mm, W= 360mm, H = 280 mm |
|
Dimension of outer box |
510 x 510 x 390 mm |
|
Net Weight |
12.5 kg Approx. Gross Weight with box= 14 Kg |
|
Current |
220volts, 50Hz A.C. |
The machine comes with any one rotor head, to be selected by customer from below mentioned table.
|
Swing out |
8 x l5ml |
|
Swing out |
16 x vacuutainers |
|
Swing out |
16 x l2 x75mm / 12x100mm borosil tubes |
|
Angle |
12 x 15ml |
- The above mentioned rotor heads are completed with S.S. tube carriers, suitable Glass/PVC centrifugal tubes, head puller, spanner and rubber cushions.
- Machine is well packed in 5 ply corrugated box.
