Fluorescent Microscope, Malaria Detection Manufacturer,Supplier and Exporter in China
Product Code : EL-BM-15893
Quick answer: Adopter for quick and assured malarial parasites detection consists of : UV adopter Capillary holder slides Fiber cable Oil Bottle, 50ml Capillary test sample 50-pcs Optional Accessories: Centrifuge 3W LED cool white light source in place of halogen light source. Additional capillary box test sample.
| Fluorescent microscope with cappillary method for the detection of malarial parasite. | |
| Body: | Binocular head inclined at 30°. |
| Stage: | Mechanical stage of 135x140mm. |
| Focussing: | Co-axial coarse and fine focussing for easy manipulation based on four stage reduction gear system & travelling on ball bearing guide ways with virtually no wear, tear and free from backlash. Tension adjustment ring on one side. Illumination: Light source (20 Volt 100 Watt) with spare bulb. |
| Illumination: | Light source (20 Volt 100 Watt) with spare bulb. |
| Condenser: | Two lens Abbe condenser N.A. 1.25 with filter support, movable by rack & pinion arrangement. |
| Eyepiece: | Wide Field 10X, 20mm. |
| Objective: | 62X |
| Filter: | Blue filter. |
| Box: | Supplied in a thermocol packing. |
Related Products

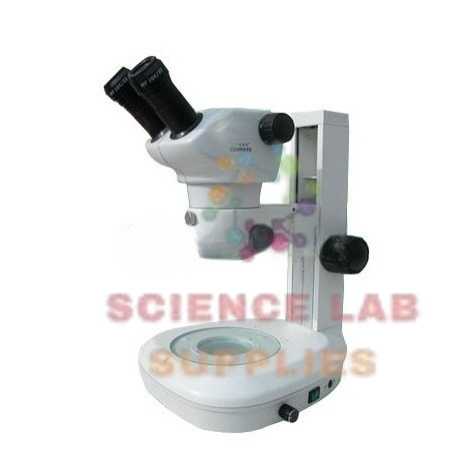

See also Inverted Fluorescent Microscope, Microslide Viewer, Bio Viewer with Slides, Stereo Zoom Microscope 30 degrees with LED (1:4) from the same Binocular Microscopes range.
Related Categories
Exact technical specifications, materials and certifications should be confirmed with our team before ordering. Models are updated from time to time, so please contact us for the current product datasheet.
